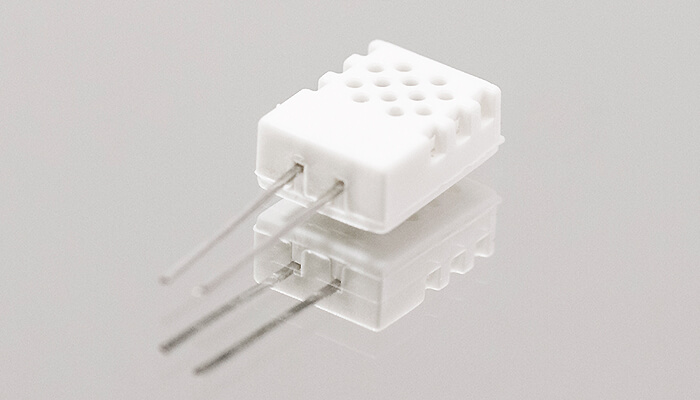

Small Humidity Sensor with Case C15-M53R
SHINYEI resistive type humidity sensor C15-M53R is a standard model with case and used for a variety of applications. C15-M53R consists of simple structure and its resistance value logarithmically changes in response to relative humidity.
It offers highly accurate sensing and long-term stability by low cost.
Features
- Small and light-weight
- Wide humidity Extremely Low cost range
- Outstanding repeatability
- Low hysteresis
- Pb free - good for environment
Specifications
| Model | C15-M53R |
|---|---|
| Supply Voltage | AC5.0V(max) |
| Power supply | 0.2W(max) |
| Operating Temperature Range | 0 to 60℃ |
| Operating Humidity Range | 20 to 95%rh |
| Operating Frequency Range | 500Hz to 2kHz |
| Humidity Measurement Accuracy | ±5%rh (at 25℃ 60%rh, 1kHz 1VAC) |
Applications
Copying machine,Weather-station、Clock,Air-conditioner、Humidifier、Dehumidifier、dryer、humidifying air cleaner
