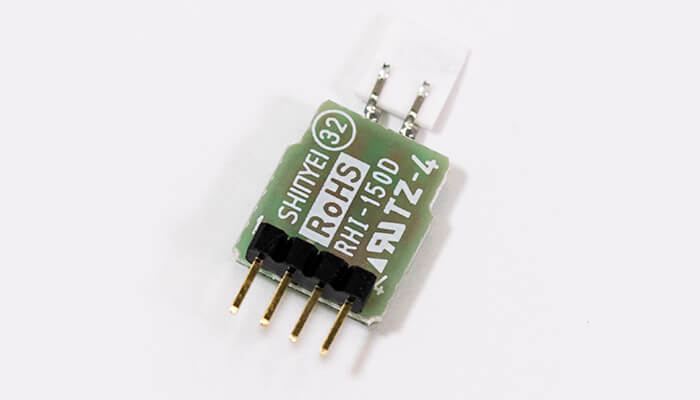

Temperature Humidity Sensor Unit RHI-150D
SHINYEI Temperature Humidity Sensor Unit RHI-150 module consists of a reliable and proven humidity sensor and a custom IC designed exclusively for the sensor, which achieved easy operation, high accuracy and cost-effectiveness.
Features
- High Accuracy: ±3%rh (at 25 °C 50%rh)
- Input Voltage: 3.15 - 5.5V
- Low Voltage dependency (include regulator in IC)
- Linear Output Voltage: 0-3V (at 90%rh：3V)
- Low temperature dependency
- Analog or Digital output (I2C)
- Wide humidity range
- Low power consumption(1/4 of the conventional products)
Specification
| Model | RHI-150D |
|---|---|
| Supply Voltage | 3.0 - 5.5VDC |
| Operating Temperature | 0 to 60 deg.C |
| Operating Humidity | 95%rh or less(No Condensation) |
| Humidity Detecting Range | 10 to 90%rh |
| Accuracy(Humidty) | ±3%rh ( at 25deg.C, 50%rh, Vin=3.0 - 5.5VDC) |
| Humidity Output | Digital(I2C) |
| Temperature Output | Digital(I2C) |
| Dimensions | 10(W) × 26(H) × 11(D)mm |
Applications
- Temperature Humidity Sensor for Copying Machine, Printer
- Temperature Humidity Sensor for Air –conditioner, Humidifier, Dehumidifier
- Temperature Humidity Sensor for HVAC equipment
