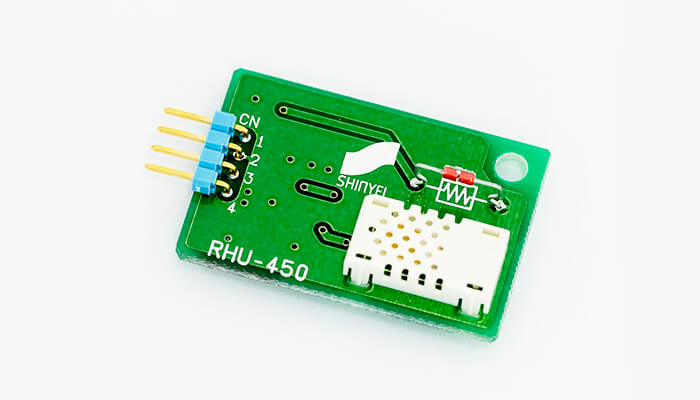

for Automotive Application RHU-450
Temperature Humidity Sensor Unit - RHU-450 humidity module sensor makes it possible to use for automotive application. This sensor module was developed easier mounting in and has high reliability and noise resistance.
Features
- Long-term stability
- Outstanding noise resistance for automobile
- Low temperature dependence
- Low hysteresis
- Outstanding repeatability
- Wide humidity operating range
Specification
| Model | RHU-450 |
|---|---|
| Supply Voltage | 5.0VDC±5% |
| Operating Temperature | -30 to 80 deg.C |
| Operating Humidity | 95%rh or less(No Condensation) |
| Humidity Detecting Range | 10 to 90%rh |
| Accuracy (Humidty) | ±5%rh ( at 25 deg.C, 50%rh, Vin=5.0VDC±5%) |
| Humidity Output | Analog(Voltage) |
| Temperature Output | Thermistor |
| Dimensions | 10(W) × 26(H) × 11(D)mm |
※This module is custom-made just for Automotive application.
Applications
- Temperature Humidity Sensor for Car, Air-contitioner
- Temperature Humidity Sensor for Industrial instruments
